Description

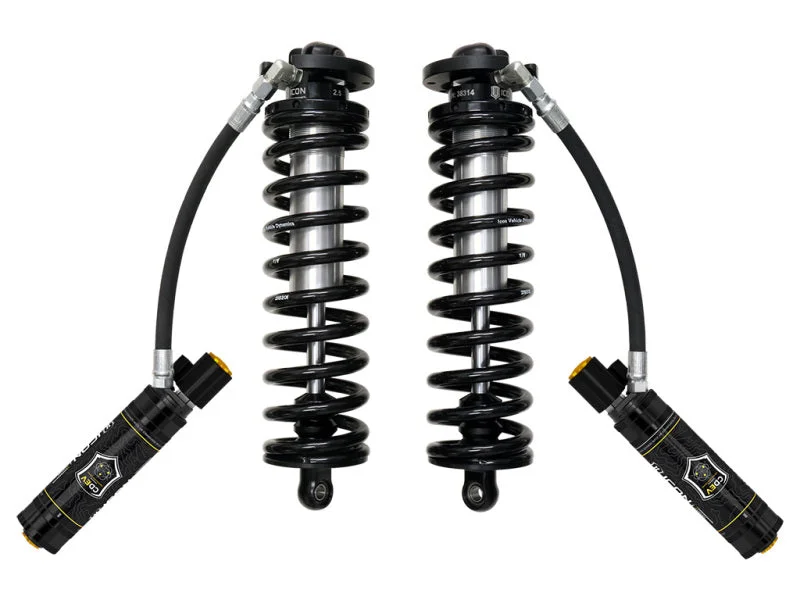

ICON’s 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2024 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5″ Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line – meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-tuned as necessary. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Features & Benefits:
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers
- ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Coilover conversion allows for addition of optional secondary shocks
- Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
- ICON engineered coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
NOTES:
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires (2005-2016 models): 35″ x 12.50″ (37″ x 12.50″ with fender trimming and modifications required)
- Recommended Aftermarket Tires (2017-2024 models): 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required)
- TECH NOTE: Only compatible with 4WD models
- TECH NOTE: Not compatible with F-450 or F-550
- TECH NOTE: Removal of the coil centering cup in factory coil bucket required for installation
- TECH NOTE: 2017-2022 models also requires installation of IIC part number 93500 and CDEV rear shock part number 37701EP
- TECH NOTE: 2023-2024 models also requires installation of IIC part number 93502 and CDEV rear shock part number 37705EP
- TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
- TECH NOTE: If installing with ICON 2.5 Aluminum Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
- TECH NOTE: If installing with ICON 2.5 Aluminum Series CDEV remote reservoir secondary shocks part number 191207 is also required
- TECH NOTE: 2005-2019 Super Duty diesel models will have front lift height range of 4-5.5″ over stock
- TECH NOTE: 2020-2022 Super Duty diesel models without Tremor package will have front lift height range of 4.75-6.25″ over stock
- TECH NOTE: 2020-2022 Super Duty diesel models equipped with Tremor package will have front lift height range of 3.75-5.25″ over stock
- TECH NOTE: 2023-2024 Super Duty diesel models without Tremor package will have front lift height range of 4-5.5″ over stock
- TECH NOTE: 2023-2024 Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5″ over stock
- TECH NOTE: 2023-2024 Super Duty gas models without Tremor package will have front lift height range of 4.5-6″ over stock
- TECH NOTE: 2023-2024 Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5″ over stock
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, 2.5 V.S. Remote Reservoir CDEV Coilover Conversion Kit | SKU: 61721E
